We are providing READY TO USE vacuum and infusion kit which contain all necessary elements such as omega profile, sealant barrier, coatings, vacuum bag, perforated films, etc. Kits are produced according to mould shapes, reducing cycle time, improving lay-up and increasing proper handling.

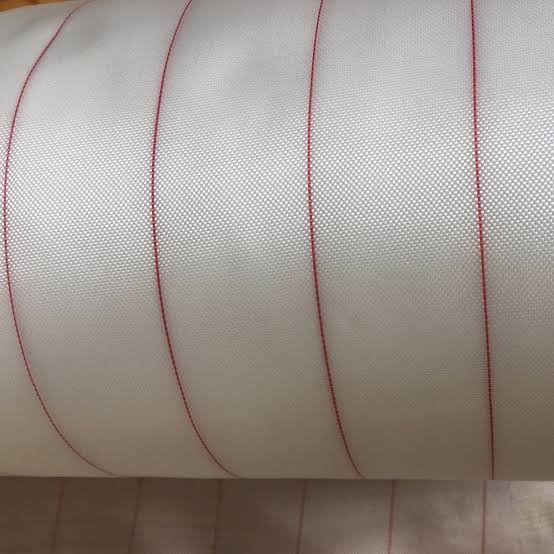

Peel ply
Peel ply is a Nylon base woven fabric used in the advanced composite industry.
A peel ply is often used on bonding surfaces to keep them clean until ready for bonding and to also provide for enhanced surface free energy when removed. We manufacture different ranges of peel plies available as per different range of curing temperature.
Fabric type
Nylon 6
Nylon 66
Thickness
85GSM
85GSM
Yarn Material
Polyester
Polyester
Process Temperature
Upto 190 °C
Upto 220 °C
Melting Temperature
240 °C
260 °C

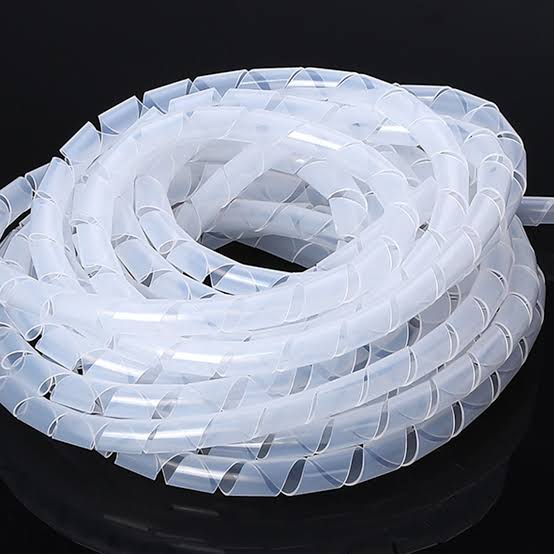

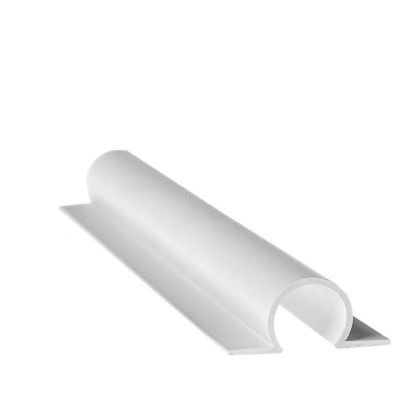

Spiral Tube and Omega Profile
Spiral tube and Omega Profile is widely used for even distribution of resin during infusion process on the laminate/component and used to establish consistent vacuum throughout the mould evenly. We produce different sizes base on requirement.
